First-generation Bronco · model year 1966

1966 Ford Bronco

Specs · value · for sale · VIN · buyer's guide

Launch year · three bodies · six then V8

1966 Ford Bronco: 1966 Ford Bronco (42912211805)
1966 Ford Bronco (42912211805). Photo: Chris Yarzab, CC BY 2.0, via Wikimedia Commons. Show vehicles may be modified.

Looking at a 1966 Ford Bronco? Below are the quick specs, how to identify a 1966 and decode its VIN, the colors and options, an inspection checklist, and what 1966 Broncos are listed for right now. There were 9 listed on Autotrader Classics as of October 18, 2026, asking $44,900 to $265,675. A1966

Ford's Donald N. Frey announced the Bronco on August 11, 1965, with showroom arrival in early September. It was a dedicated compact 4x4 aimed squarely at the Jeep CJ-5 and the International Scout. R

It rode a 92-inch-wheelbase box-section frame shared with no other Ford, used a coil-sprung front axle on radius arms with a track bar, and had four-wheel drive as standard on every truck. WH

Ford priced the first Bronco from $2,194, and buyers could choose a doorless roadster, a half-cab Sports Utility pickup, or a full-roof wagon. WH

1966 Ford Bronco specs & quick facts

Bodies
Roadster, half-cab, wagon
HC
Engines
170 six, 105 hp (code F) / 289 V8, 200 hp (code N)
LE
Transmission
3-speed manual
EC
Transfer case
Dana 20, low 2.46:1
E
Front axle
Dana 30
CE
Rear axle
Ford 9-inch
CE
Front brakes
11x2 in drum
CE
Steering
Manual, 5.3 turns
CE
Wheelbase / turning
92 in / 33.6 ft (Ford, 1968)
HF68
Fuel tanks
14.5 + 11.5 aux gal
CEF70
Production
18,200 (Ford/EBR); 23,776 alternate
EP
Colors
10
H
VIN serial range
732,001–914,000
L
Roadsters built
4,090
R

How to identify a 1966 Ford Bronco

Year tells

Vs. prior year: First year of the Bronco; no predecessor.
Vs. 1967: 1967 brought a dual master cylinder, self-adjusting brakes, standard backup lights, rearward rear shocks, parchment interiors and the first Sport package.

What changed for 1966

Reading the VIN

1966 Ford Bronco options, packages & interior

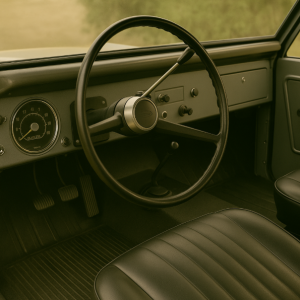

Interior

1966 Ford Bronco colors

Hagerty counts 10 paint colors for 1966. H

Raven Black, Wimbledon White, Rangoon Red, Arcadian Blue, Springtime Yellow, Sahara Beige, Marlin Blue, Holly Green, Caribbean Turquoise, Peacock Blue, Light Turquoise, Poppy Red, Chrome Yellow, Pure White (roadster list). R

Buying a 1966 Ford Bronco: inspection checklist

Body: panel by panel

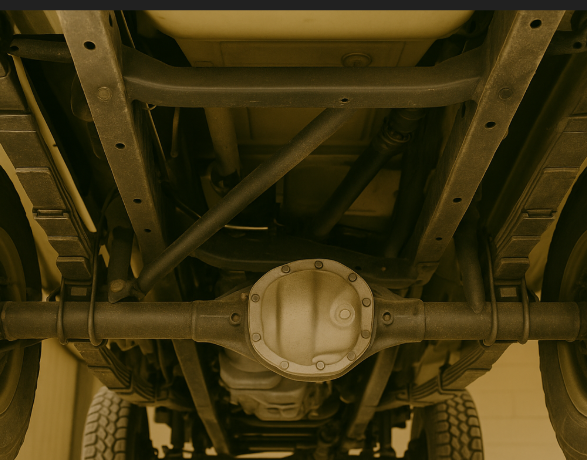

Frame

VIN, data plate and numbers-matching

Mechanical

1966 Ford Bronco upgrades & swaps

Roll bars were never a factory option on early Broncos. A family-style cage protects rear-seat passengers and gives a mount for the rear belts. WHR

1966 Ford Bronco parts compatibility

System1966Source
Front axleDana 30 (1966–70)CE
Rear axleFord 9-inch (all years). 1977 has an HD housing; big-power builds move to 31-spline.ETO
Transfer caseDana 20 with a Bronco-specific front mount (not interchangeable with other Dana 20s)H
Front brakesDrum, shared 1966–75CE
Steering linkageT-style 1966–75C
Fuel tank/senderYear-specific capacities (see quick facts); order by yearCE
Rear shocksForward stud mount (most '66s)ER

Shopping for parts? See early Bronco parts and the vendor directory.

Restoring a 1966 Ford Bronco

More in our Bronco restoration guide.

How the 1966 compares with other early Broncos

YearBodiesEnginesFront axleFront brakesTransmissionBuilt (two counts)Avg ask (listings)
1966Roadster, half-cab, wagon170 six / 289 V8Dana 30Drum3-spd manual18,200 / 23,776$80,428 (9)
1967Roadster, half-cab, wagon170 six / 289 V8Dana 30Drum3-spd manual16,100 / 14,230$109,700 (11)
1968Roadster, half-cab, wagon170 six / 289 V8Dana 30Drum3-spd manual15,700 / 16,841$106,327 (16)
1969Half-cab, wagon170 six / 302 V8Dana 30Drum3-spd manual19,200 / 20,956$91,590 (26)
1970Half-cab, wagon170 six / 302 V8Dana 30Drum3-spd manual18,500 / 18,450$105,775 (22)
1971Half-cab, wagon170 six / 302 V8Dana 44Drum3-spd manual18,700 / 19,784$90,324 (18)
1972Half-cab, wagon170 six / 302 V8Dana 44Drum3-spd manual18,300 / 21,115$119,187 (23)
1973Wagon200 six / 302 V8Dana 44Drum3-spd or C4 auto26,300 / 21,894$101,057 (31)
1974Wagon200 six / 302 V8Dana 44Drum3-spd or C4 auto21,400 / 25,824$79,862 (19)
1975Wagon302 V8Dana 44Drum3-spd or C4 auto13,200 / 13,125$143,659 (checked Nov 11)
1976Wagon302 V8Dana 44Disc3-spd or C4 auto14,500 / 15,256$105,605 (15)
1977Wagon302 V8Dana 44Disc3-spd or C4 auto30,700 / 14,546$86,452 (25)

Specs HCEL. Production: Ford/EBR series and the EarlyBroncoAds series, which disagree EP. Asking prices from Autotrader Classics, October 18, 2026 A1966A1967A1968A1969A1970A1971A1972A1973A1974A1975A1976A1977, are asking prices, not sales.

1966 Ford Bronco for sale: what to pay & where to find one

Listings9
Lowest ask$44,900
Average ask$80,428
Highest ask$265,675

Autotrader Classics showed 9 1966 Broncos for sale, asking $44,900 to $265,675 (average $80,428), as of October 18, 2026. A1966 These are dealer and private asking prices, not sale prices, and the high end is usually a restomod.

What to pay

Where to find a 1966 Bronco

Classified marketplaces
Autotrader Classics 1966 Bronco listings A1966 and the CLASSIC.COM first-gen market CLS
Auctions
Bring a Trailer's Bronco page, which mixes generations, so filter to 1966–77. BAT
On Old Broncos
Early Broncos for sale and sell your Bronco. On-site listings are coming soon.
Clubs and forums
Members often sell to members. See our Bronco club directory.

Before you buy, run through the 1966 inspection checklist and decode the VIN. Never wire money or pay a deposit for a truck you haven't seen.

1966 Ford Bronco value & price

Where sources disagree

Where our sources give different numbers, we show each value next to its source and say what evidence would settle it. Nothing below has been guessed.

More photos

1966 Ford Bronco: 1966 Ford Bronco (6098504018)
1966 Ford Bronco (6098504018). Photo: dave_7 from Lethbridge, Canada, CC BY 2.0, via Wikimedia Commons.
1966 Ford Bronco: 1966 Ford Bronco Sports Utility, front right, 09-07-2024
1966 Ford Bronco Sports Utility, front right, 09-07-2024. Photo: MercurySable99, CC BY-SA 4.0, via Wikimedia Commons.

1966 Ford Bronco FAQ

How many 1966 Bronco roadsters were built?

4,090, per the Roadster Registry citing the Ford Industrial Archives. R

Can I get a Marti Report for a 1966 Bronco?

No. Marti's Ford data starts at 1967; 1966 and earlier aren't available. MFR

Did all 1966 Broncos have 4WD?

Yes. Four-wheel drive with a Dana 20 transfer case was standard on every first-generation Bronco. W

Where are the VIN stamps on a 1966 Ford Bronco?

On the warranty plate (glove-box door, per EarlyBronco.org) and stamped on the passenger-side frame rail near the starter. O

What engine does a 1966 Bronco have?

The 170 six (code F) or the 289 V8 (code N). L

Can I get factory build records for a 1966?

No. Marti data starts at 1967. M

How much is a 1966 Ford Bronco worth?

Asking prices on Autotrader Classics ran $44,900 to $265,675 (average $80,428, 9 listings) on October 18, 2026. Those are asking prices, not sales. Hagerty's 2021 guide put the median Excellent early Bronco at $53,650. A1966H

Where can I find a 1966 Ford Bronco for sale?

Autotrader Classics, the CLASSIC.COM first-gen market, Bring a Trailer auctions, club classifieds and our for-sale page. A1966CLSBAT

Is a 1966 Bronco a 2-door or 4-door?

Two-door. Every factory early Bronco (roadster, half-cab or wagon) had two doors. Ford's first four-door Bronco came in 2021. W2

Does the top come off an early Bronco?

Yes. Ford's 1968 brochure says the wagon's upper body and the pickup's cab roof can be removed. F68

How much did a 1966 Ford Bronco cost new?

Ford's base price was $2,194. WW2

Did the 1966 Ford Bronco come with a 351?

No. A 1966 came with the 170 six or, from March 1966, the 289 V8 (VIN code N). Ford never offered a 351 in the 1966–77 Bronco. LE

How many 1966 Ford Broncos were made?

Sources disagree: 18,200 (Ford/EBR series) or 23,776 (EarlyBroncoAds series, including 4,090 roadsters). HEP

How do you identify a 1966 Ford Bronco?

Look for the VIN on the warranty plate on the back of the glove-box door, solid red taillights with no side markers, forward-angled rear shocks on most trucks, and, on early builds, a ball-topped transfer-case lever. OREFR

Parts & tools for your 1966 Bronco

Start with the factory shop manual. A parts vendor calls it "an essential reference for any serious early Bronco restoration or mechanical repair" and says it beats the owner's manual for repair work. TOM Frame rust can work from the inside out, so check the welds and drain holes with a borescope. KE

Product pages checked October 18, 2026. Prices change, so check the listing.

As an Amazon Associate we earn from qualifying purchases.

Keep exploring

1967 Ford BroncoNext yearBuyer's guidePrices, checks, which yearEarly Broncos for saleWhat to pay, where to lookEarly Bronco partsSeats, frames, bumpers, kitsVIN decoderWhere the VIN stamps areFirst-gen hubAll 1966–77 yearsBronco historyEvery generation2-door vs 4-doorWhich Broncos had four doors
